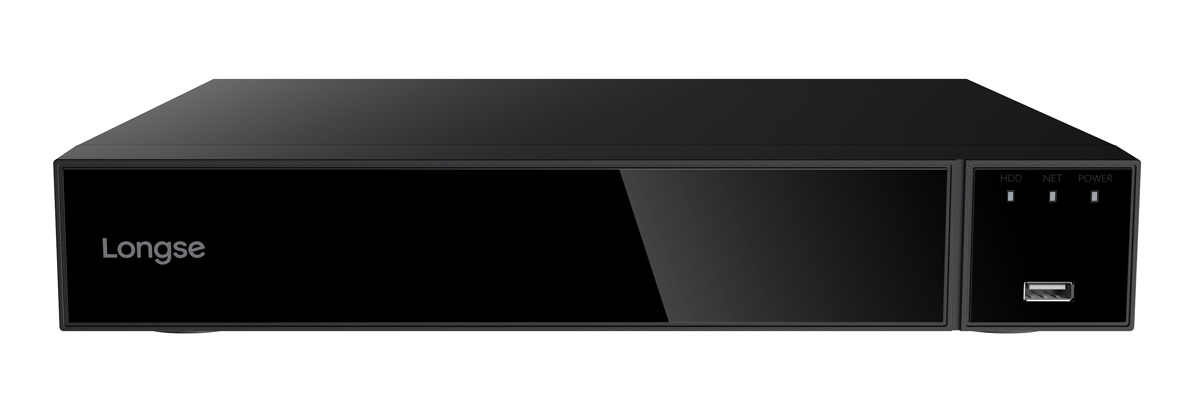

LONGSE XVR υβριδικό καταγραφικό XVR3008C1N, 5MP, H.265/H.264, 8 καναλιών

Υβριδικό XVR καταγραφικό 5 σε 1 (AHD, CVI, TVI, IP, Analog) της Longse, με υποστήριξη έως 8 αναλογικών καναλιών ή 16 δικτυακών καναλιών. Υποστηρίζει ανάλυση καταγραφής έως 5MP.
Τα καταγραφικά της Longse αποτελούν προϊόντα τεχνολογικής αιχμής, κατασκευάζονται από ποιοτικά υλικά και με αυστηρά κριτήρια ποιότητας, ώστε να λειτουργούν αξιόπιστα και απροβλημάτιστα, προσφέροντας σιγουριά και ασφάλεια.

Σημεία ενδιαφέροντος προϊόντος
-υποστήριξη έως 8 αναλογικών καναλιών
-υποστήριξη έως 16 δικτυακών καναλιών
-υποστηρίζει ανάλυση έως 5MP
-H.265/H.264 video compression
-υποστήριξη απομακρυσμένου ελέγχου μέσω smartphone
-υποστήριξη σκληρού δίσκου με χωρητικότητα έως 8TB
-ελληνικό μενού

Συμβατές εφαρμογές:

Android
https://play.google.com/store/apps/details?id=com.gzch.lsplat.bitdog&hl=el

IOS
https://apps.apple.com/us/app/bitvision/id1419463554

PC
http://www.herospeed.net/en/index.php?m=content&c=index&a=lists&catid=10

WEB Browser
www.bitvision.app

Τεχνικά χαρακτηριστικά
System
-Main Processor: MC6630
-Operating System: Embedded LINUX

Video
-Input:
Analog: 8x (TVI/AHD: 5M @12fps; AHD/TVI/CVI: 4M @15fps; AHD/TVI/CVI: 1080P/720P @30fps; Analog: 960H)
Analog + Network: 2x Analog (5MP) + 7x network (MAX 5MP), 4x Analog (5MP) + 5x network (MAX 5MP), 6x Analog (5MP) + 3x network (MAX 5MP)
Network: 16x 5MP/4MP/3MP/1080P/960P/720P (Total incoming bandwidth -Input: 8CH BNC
-Signal Type: Analog/AHD/CVI/TVI 2.0/TVI 3.0/Network

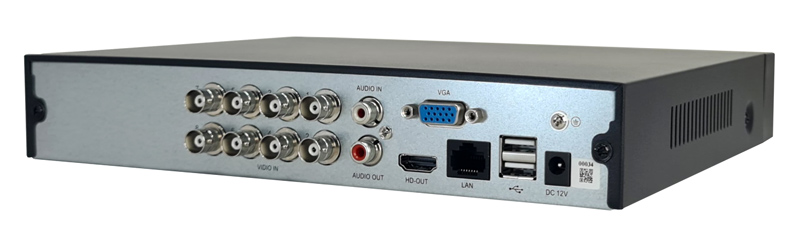

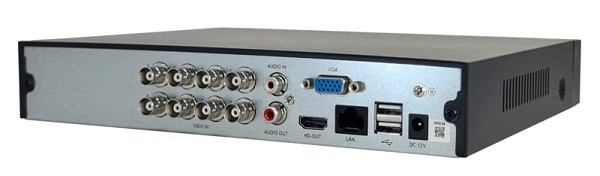

-Output: 1 HD, 1 VGA

Audio
-Input: 1 Channel RCA, support AOC
-Output: 1 Channel RCA

Alarm
-Motion Detection: 8 Channel (max 16 Channel in pure network mode)
-Trigger Events: Recording, Email, Screen tips, Buzzer, Push notifications (motion detection)
-Email Alarm: Send Image to The Designated E-mail

AI Function
-Human Detection: Yes

PTZ
-Protocol: Coaxial Control

Display
-VGA Resolution: 1920 x 1080P, 1280 x 1024, 1280 x 720, 1024 x 768
-HD Output: Resolution: 1920 x 1080P, 1280 x 1024 , 1280 x 720, 1024 x 768
-Display Split: 1/4/8/9/16
-Privacy Masking: 3 Rectangular Zones (Each camera)
-OSD: Camera title, Time, Video loss, Motion detection, Recording

Recording
-Video Compression: H.265/H.265+/H.264/H.264+
-Audio Compression: G.711U/G.711A
-Resolution: 5MP_Lite (1280x1952), 4MP_Lite (1280x1440), 1080N (960x1080), 720P (1280x720), 960H (960x480)
-Video Quality: Lowest/Low/Ordinary/Good/Better/Best
-Record Rate:
Analog: PAL: 5MP_Lite (1296x1944 8x6fps), 4MP_Lite (1280x1440 8x8fps), 1080N (960x1080 8x15fps), 720P (1280x720 8*15fps), 960H (960x480 8x25fps)
NTSC: 5MP_Lite (1296x1944 8x6fps), 4MP_Lite (1280x1440 8x8fps), 1080N (960x1080 8x15fps), 720P (1280x720 8x15fps), 960H (960x480 8x30fps)
Pure IP (H.265):
PAL: 5MP @8x25fps, 4MP @12x25fps, 3MP @12x25fps, 1080P @16x25fps, 960P @16x25fps, 720P @16x25fps, D1 @16x25fps
NTSC: 5MP @8x30fps, 4MP @12x30fps, 3MP @12x30fps, 1080P @16x30fps, 960P @16x30fps, 720P @16x30fps, D1 @16x30fps
-Record Mode: ManualTimerMotion DetectionIntelligent

Playback & Backup
-Decode Capability: 2x 1080P @30fps
-Sync Playback: Pure Analog: 4CH 5MP Lite @6fps, 4CH 4MP Lite @8fps, 4CH 1080P Lite @15fps, 4CH 720P @15fps / Mixture mode: 1CH 5MP @30fps, 4CH 5M_Lite @6fps, 4CH 1080P_Lite @15fps / Pure Network: 1CH 5MP @30fps, 1CH 4MP @30fps, 2CH 1080P @30fps, 4CH 720P @30fps
-Remote Playback: 4 Channel / 1 Channel
-Search Mode: ALL, Channel, Manual, Time, Date, Motion Detection, Human Detection, Tag
-Playback Functions: Play, Pause, Stop, Fast play, Slow Play, Rewind, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Backup Selection, Digital Zoom
-Smartphone Playback: 4 Channel
-Backup Mode: USB Device (with format FAT 32)/Network/FTP

Network
-Interface: 1 RJ-45 10M/100M self-adaptive Ethernet Interface
-Network Functions: TCP/IP, HTTP, HTTPS, SMTP, DHCP, FTP, DDNS, RTP, RTSP, RTCP, NTP, UPnP
-DDNS: Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES, ZEBEYE, HDPROVN, DYNAMIC_PLANET, EASY_PLANET
-Web Browser: Edge, IE8-11, Google Chrome, Firefox, Safari
-CMS Software: Support Windows 7/Windows 8/Windows 10/Windows 11/MAC OS
-Extra Stream: CIF/D1 (1-30fps)
-Smartphone: iPhone, Android

Hard Disk Driver
-Interface Type: 1 SATA Interface
-Capacity: 1 SATA Hard Disk (2.5"/3.5" SATA, Up to 8TB)

General
-UTC Control: Yes
-USB Interface: 2 USB 2.0 Interfaces
-Power consumption: DC 12V/1.5A -Working Environment: -10 °C ~ 55 °C / 10 ~ 90%
-Dimension (WxDxH): 260 x 23 x 43mm
-Weight: 0.86Kg (Without HDD)

Περιεχόμενα συσκευασίας
-XVR καταγραφικό
-Ενσύρματο ποντίκι
-Τροφοδοτικό
-Βίδες
-Εγχειρίδιο χρήσης
