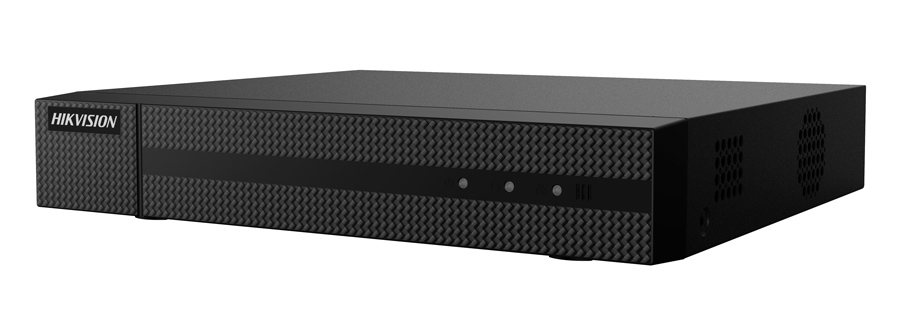

HIKVISION HIWATCH NVR καταγραφικό HWN-4108MH-8P, H.265+, 8 κανάλια PoE

Καταγραφικό NVR της σειράς HiWatch από την HIKVISION. Υποστηρίζει έως και 8 κανάλια PoE δικτυακών IP καμερών με ανάλυση εγγραφής έως 8MP και κωδικοποίηση βίντεο H.265+. Επιπλέον υποστηρίζει HDD έως 8ΤΒ.

-H.265+/H.265/H.264+/H.264 video compression
-Up to 80Mbps incoming bandwidth and 80 Mbps outgoing bandwidth
-Up to 8-ch IP network camera inputs, up to 8 MP resolution
-HDMI and VGA independent output
-HDMI video output at up to 4K resolution
-1 SATA interface (up to 6 TB capacity per HDD)
-Smart search for the selected area in the video and smart playback to improve the playback efficiency
-Support multiple VCA (Video Content Analytics) events
-8 independent PoE network interfaces
-1 self-adaptive 10/100 Mbps Ethernet interface
-Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
-Live view from smart device or Internet

Τεχνικά χαρακτηριστικά
IP video input: 8-ch, up to 8 MP resolution
Incoming bandwidth: 80 Mbps
Outgoing bandwidth: 80 Mbps
HDMI output: 4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
VGA output: 1-ch, 1920x1080p/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Video output mode: HDMI/VGA independent output
Audio output: 1-ch, RCA (Linear, 1 KΩ)
Two-way audio input: 1-ch, RCA (2.0 Vp-p, 1 KΩ)
Decoding format: H.265+/H.265/H.264+/H.264
Recording resolution: 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous playback: 8-ch
Capability: 1-ch at 8MP (30fps) / 4-ch at 1080p (30fps)
Stream type: Video, Video & Audio
Remote connection: 64
Network protocol: IPv6, HTTPS, UPnP, NTP, SADP, SMTP, PPPoE, DDNS, iSCSI, NFS
Network interface: 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Recording resolution: 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Interoperability: ONVIF 2.2
POE Interface: 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power: SATA: 1 SATA interface
Capacity: Up to 6 TB capacity for each disk
USB interface: Rear panel: 2x USB 2.0
Power supply: 48 VDC, Consumption (without HDD): Working temperature: -10°C to 55°C
Working humidity: 10% to 90%
Dimension (WxDxH): 265 x 225 x 48 mm
Weight (without HDD): 1 kg

Περιεχόμενα συσκευασίας
NVR καταγραφικό
Ενσύρματο ποντίκι
Τροφοδοτικό
Καλώδια σύνδεσης
Βίδες
Εγχειρίδιο χρήσης
