HIKVISION HIWATCH DVR υβριδικό καταγραφικό HWN-6232MH-G4 4MP, 32 κανάλια

DVR υβριδικό καταγραφικό της σειράς HiWatch από την Hikvision με υποστήριξη έως 32 αναλογικών καναλιών ή 40 IP καναλιών, με ανάλυση εγγραφής έως 8MP.

-υποστήριξη έως 32 αναλογικών καναλιών ή 40 IP καναλιών
-υποστήριξη κωδικοποίηση βίντεο H.265 Pro+/H.265 Pro/H.265
-ανάλυση έως 4MP
-υποστήριξη 2x σκληρών δίσκων
-HDTVI/AHD/CVI/CVBS/IP video inputs
-εύκολη διαχείριση μέσω της Hik-Connect εφαρμογής
-motion detection 2.0 για όλα τα αναλογικά κανάλια
-υποστήριξη ήχου μέσω του ομοαξονικού καλωδίου (Audio Over Coaxial)

Τεχνικά χαρακτηριστικά
Recording
Video compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding resolution:
-When 1080p lite mode is not enabled: 4MP lite/1080p/720p/VGA/WD1/4CIF/CIF
-When 1080p lite mode is enabled: 4MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF
Frame rate main stream:
-When 1080p Lite mode is not enabled: 4MP lite/1080p @15 fps; 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
When 1080p Lite mode is enabled: 4MP lite @15 fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF @25 fps (P)/30 fps (N)
Frame rate sub-stream: WD1/4CIF @12 fps; CIF @25 fps (P)/30 fps (N)
Video bit rate: 32 Kbps to 6 Mbps
Dual stream: Support
Stream type: Video, Video & Audio
Audio compression: G.711u
Audio bit rate: 64 Kbps

Video and Audio
IP video input: 2-ch (up to 34-ch), Enhanced IP mode on: 8-ch (up to 40-ch), each up to 4 Mbps, Up to 6 MP resolution, Support H.265+/H.265/H.264+/H.264 IP cameras
Analog video input: 32-ch, BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI input: 3K @20fps, 4MP @30fps, 4MP @25fps, 1080p @30fps, 1080p @25fps, 720p @60fps,
720p @50fps, 720p @30fps, 720p @25fps
AHD input: 4MP @25fps, 4MP @30fps, 1080p @25fps, 1080p @30fps, 720p @25fps, 720p @30fps
HDCVI input: 4MP @25fps, 4MP @30fps, 1080p @25fps, 1080p @30fps, 720p @25fps, 720p @30fps
CVBS input: PAL/NTSC
CVBS output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704x576, NTSC: 704x480
VGA output: 1-ch, 1920x1080/60Hz, 1280x1024/60Hz, 1280x720/60Hz
HDMI output: 1-ch, 4K (3840x2160)/30Hz, 2K (2560x1440)/60Hz, 1920x1080/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Video output mode: HDMI and VGA simultaneous output
Audio input: 1-ch, RCA (2.0 Vp-p, 1 KΩ), 32-ch via coaxial cable
Audio output: 1-ch, RCA (Linear, 1 KΩ)
Two-way audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Synchronous playback: 16-ch

Network
Total bandwidth: 128 Mbps
Incoming bandwidth (Enhanced IP mode): 96 Mbps
Remote connection: 128
Network protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Network interface: 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface

Auxiliary interface
SATA: 2 SATA interfaces
Capacity: Up to 10 TB capacity for each disk
Serial interface: 1 RS-485 (full-duplex)
USB interface: Front panel: 1x USB 2.0, rear panel: 1x USB 3.0

Motion Detection 2.0
Human/Vehicle Analysis: Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported;

General
Power supply: 12 VDC, 3.3 A
Consumption (without HDD): Working temperature: -10 °C to +55 °C
Working humidity: 10% to 90%
Dimension (WxDxH): 385 x 315 x 52mm

Περιεχόμενα συσκευασίας

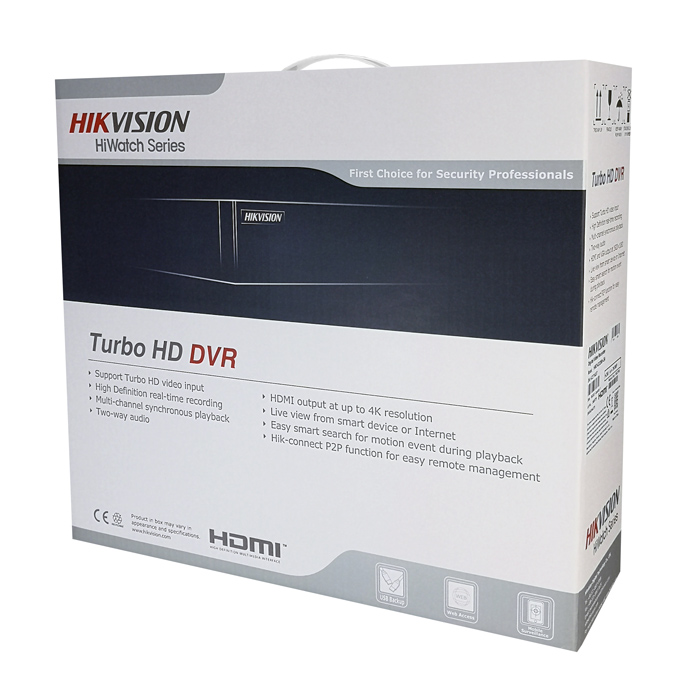

DVR καταγραφικό
Ενσύρματο ποντίκι
Αντάπτορας τροφοδοσίας
Καλώδιο τροφοδοσίας
Καλώδιο δικτύου
Καλώδια σύνδεσης
Βίδες
Εγχειρίδιο χρήσης
