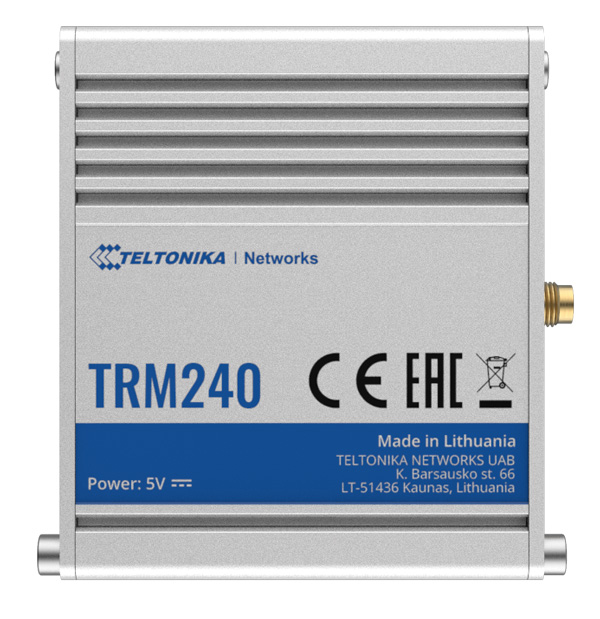

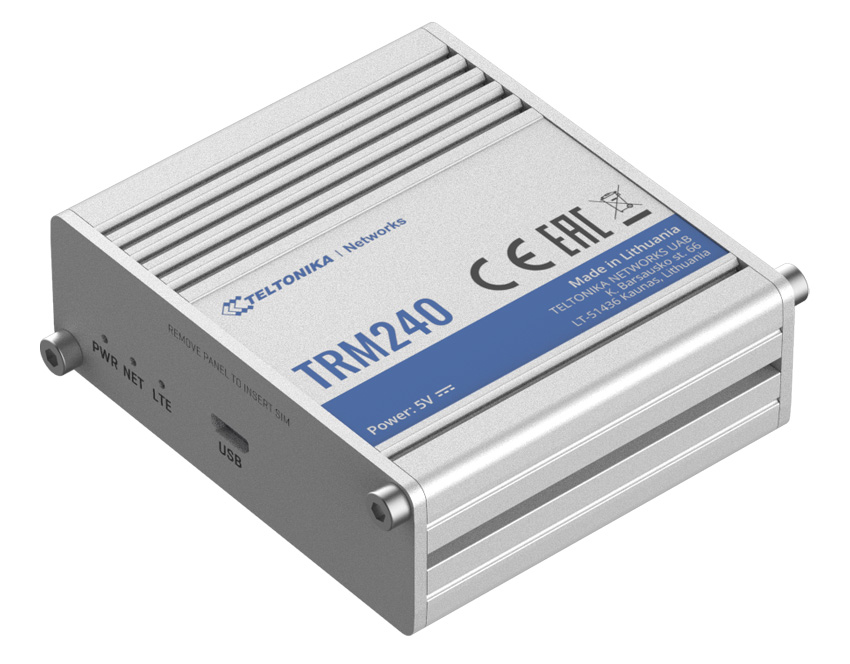

TELTONIKA Industrial cellular modem TRM240, LTE Cat 1, USB

-Connectivity, 4G/LTE (Cat 1), 3G, 2G
-Durability, Rugged aluminium housing
-USB Interface for internet accsess
-Efficiency, Low power consumption
-Compactness, Small size, easy installation
-Ease of use, Controlled using Network manager

Τεχνικά χαρακτηριστικά
Mobile LTE (Cat1) / 3G / 2G
SIM slot Mini SIM (2FF)
Antenna connector 1 x SMA for LTE
Operating Voltage 5V - powered via microUSB
Power consumption 3.2 W Max
Configuration interface microUSB
LED indicators Power, Network and LTE status LEDs
Operating temperature -40 °C to 75 °C
Operating humidity 10 % to 90 % non-condensing
Casing material Aluminium housing
Ingress Protection Rating IP30
Dimensions 64.5 x 74.5 x 25 mm (L x W x H)
Weight 131 g
Management software Windows Connection Manager (NDIS driver)
USB Serial Driver Windows 7/8/8.1/10,
Windows CE 5.0/6.0,
Linux 2.6/3.x/4.1~4.14,
Android 4.x/5.x/6.x/7.x/8.x
RIL Driver Android 4.x/5.x/6.x/7.x/8.x
NDIS Driver Windows 7/8/8.1/10
Gobinet Driver Linux 2.6/3.x/4.1~4.14
Linux qmi wwan Driver 3.x (3.4 and later)/4.1~4.14
Protocols TCP/UDP/PPP/FTP(S)/HTTP(S)/NTP/PING/QMI/SSL

Περιεχόμενα συσκευασίας
TRM240 board
1x LTE antenna (swivel, SMA male)
Micro-USB cable (0.8 m)
1x hex key
QSG (Quick Start Guide)

TRM250
TELTONIKA Industrial cellular modem TRM250, 4G LTE Cat M1, USB

-Connectivity, 4G/LTE (Cat M1), NB-IoT, 2G
-Durability, Rugged aluminium housing
-USB Interface for internet accsess
-Efficiency, Low power consumption
-Compactness, Small size, easy installation
-Ease of use, Controlled using Network manager

Τεχνικά χαρακτηριστικά
Mobile: LTE (Cat-M1) / NB-IoT / EGPRS
SIM slot: Mini SIM (2FF)
Antenna connector: 1 x SMA
Operating Voltage: 5V - powered via microUSB
Power consumption: 3.6 W Max
Configuration interface: microUSB
LED indicators: Power and Network status LEDs
Operating temperature: -40 °C to 75 °C
Operating humidity: 10 % to 90 % non-condensing
Casing material: Aluminium housing
Ingress Protection Rating: IP30
Dimensions: 64.5 x 74.5 x 25 mm (L x W x H)
Weight: 130 g
Management software: Windows Connection Manager (NDIS driver)
USB Serial Driver: Windows 7/8/8.1/10, Linux 2.6/3.x/4.1~4.14, Android 4.x/5.x/6.x/7.x/8.x
RIL Driver: Android 4.x/5.x/6.x/7.x/8.x

Περιεχόμενα συσκευασίας
TRM250 board
1x Mobile antenna (swivel, SMA male)
Micro-USB cable (0.8 m)
1x hex key
QSG (Quick Start Guide)
