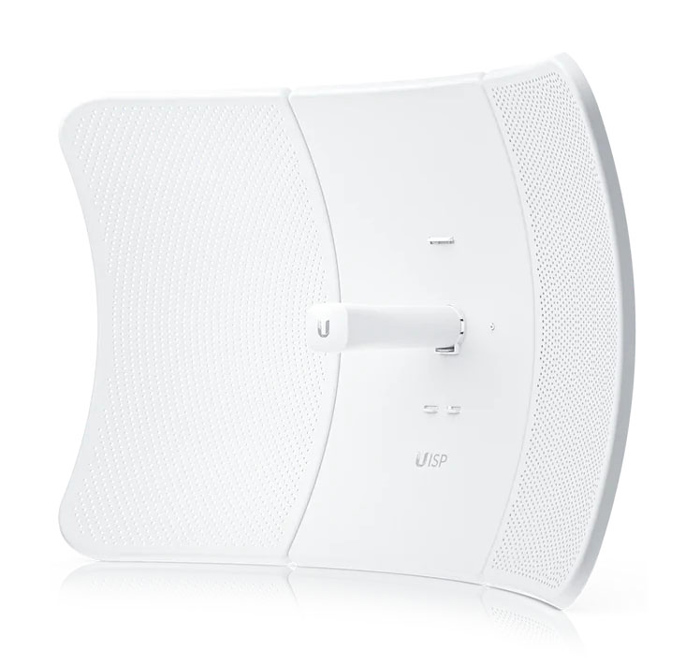

UBIQUITI CPE UISP airMAX LiteBeam LBE-5AC-XR, 450+ Mbps, 5GHz, IPX6

Το LBE-5AC-XR είναι ένα υψηλής απόδοσης CPE, εξωτερικού χώρου, σχεδιασμένο να προσφέρει γρήγορο ασύρματο δίκτυο σε μεγάλες αποστάσεις.
Χάρη στην ενσωματωμένη κεραία υψηλής απολαβής, παρέχει ταχύτητες έως 450+ Mbps στη συχνότητα 5 GHz.
Ρυθμίζεται εύκολα μέσω smartphone και της εφαρμογής UISP Mobile.

-Proprietary airMAX ac chipset
-Ultra-lightweight aluminum alloy and UV-stabilized polycarbonate
-High-gain antenna with InnerFeed technology
-Establishes high-speed, extremely-long-distance links
-Integrated GPS
-Link planning support via ISP Design Center
-Dedicated management radio for quick device setup via the UISP Mobile app

Συμβατή εφαρμογή: UISP Mobile

APP για Android συσκευή:
https://play.google.com/store/apps/details?id=com.ubnt.umobile&hl=el&gl=US

APP για iOS συσκευή:
https://apps.apple.com/us/app/uisp-mobile/id1183022489

Τεχνικά χαρακτηριστικά
Hardware
Networking interfaces: (1) GbE RJ45 port
Button: Factory reset
LEDs: Power/ethernet
RF connections: Internal
Max. power consumption: 7W
Power method: Passive PoE 2-pair (4, 5+; 7, 8-)
Power supply: 24VDC, 0.5A Gigabit PoE adapter (included)
Supported voltage range: 22-26VDC
Operating temperature: -40 to 70°C
Operating humidity: 5 to 95% non-condensing

System
Maximum throughput: 450+ Mbps
Encryption: WPA2-PSK (AES)

Software
OS: airOS®
Modes: PtMP, PtP
Services: SNMP, SSH, dynamic DNS, webserver, remote log, ping watchdog
Utilities: airView®, speed test, alignment, discovery, ping, traceroute, constellation
Management interface: Dedicated management radio for quick device setup via the UISP™ Mobile app, WEB UI
Minimum software requirements: Modern Web browser or Android/iOS smartphone

RF
Operating frequency: 5.15 to 5.85 GHz, Depends on regulatory region.
Max. conducted TX power: 25 dBm
Management radio: 2400 - 2483.5 MHz
Channel bandwidth: 10/20/30/40/50/60/80 MHz
Antenna Gain: 29 dBi
Isolation: 20 dB
Beamwidth: HPOL: 3 dB: 5.5°, 6 dB: 7.5° / VPOL: 3 dB: 5.5°, 6 dB: 7.5° / Elevation: 3 dB: 5.5°, 6 dB: 7.5°
Electrical downtilt: 0°

Mechanical
Dimensions: 747 x 525 x 347 mm
Weight: 3.2 kg
Enclosure materials: Aluminum alloy, UV stabilized polycarbonate
Mount material: UV stabilized polycarbonate
Mount: Integrated pole mount (included), Pole compatibility: Φ35-60 mm
Wind loading: 1100 N at 200 km/h (247.29 lbf at 125 mph)
Weatherproofing: IPX6

Περιεχόμενα συσκευασίας
Reflection panels
Pivot panels
LiteBeam AC XR InnerFeed
Rear housing
Mounting bracket
Hardware kit
Metal straps
Gigabit PoE adapter (24V, 0.5A)
