DELOCK Κάρτα Επέκτασης PCIe x16 σε NVMe M.2 Key M

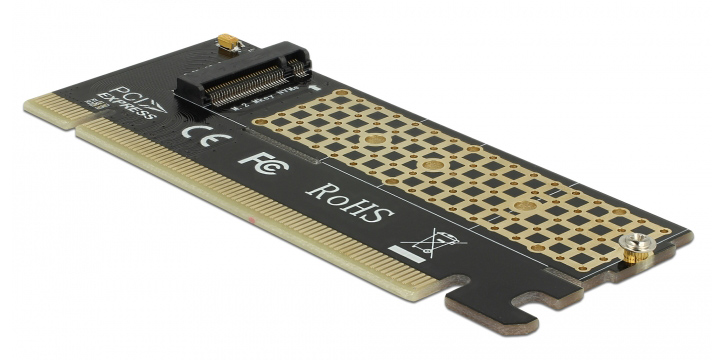

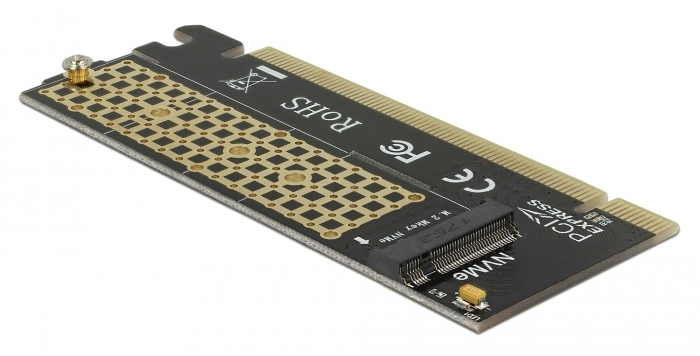

This PCI Express card by Delock expands the PC by one M.2 slot. One M.2 module in 2280, 2260, 2242 or 2230 format can be connected. If the card will be installed in the PC, the slot bracket does not have to be removed.

Connectors: 1x 67 pin M.2 key M slot, 1x PCI Express x16, V4.0
Interface: PCIe
Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key M or key B+M based on PCIe
Bootable, ex UEFI version 2.3.1
Supports NVM Express (NVMe)
1x LED indicator
Holes in the PCB for cooling the SSD
Holder for lock on PCI Express x16 slots
Dimensions (LxWxH) without PCIe connector and lock holder: ca. 98 x 32 x 5 mm

System requirements
Linux Kernel 3.17 or above
Windows 7/7-64/8.1/8.1-64/10/10-64
PC with one free PCI Express x16 / x32 slot

Περιεχόμενα συσκευασίας
PCI Express card

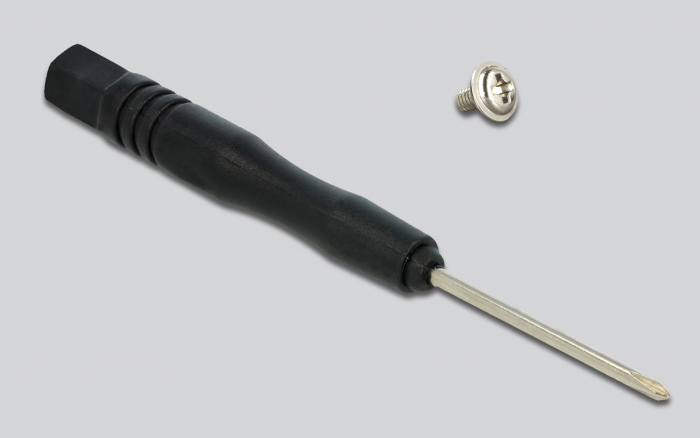

1 x fixing screw for M.2 module
Screwdriver
User manual
