Features:

•  Voltage converter: Convers a wide range of voltages, including 12 to 3.3V; 12V to 5V; 24 to 5V; 24V to 12V.

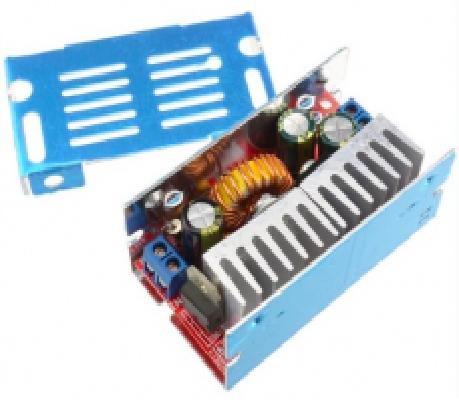

•  Easy to dissipate heat with aluminum case and internal finned heatsink.

•  DIY an adjustable voltage regulated power supply.

•  12/24V Car Laptop power supply.

•  Car LED power supply.

•  Small power motor speed control.

•  Power supply transformers.

•  Industrial equipment buck.

•  Batteries buck, and etc.

Specifications:

1  Type: non-isolated step-down module (Buck)

2  Dimensions: 70mm x 39mm x 31mm

3  Input voltage :4.5-32V ( please don't exceed 32V)

4  Output voltage :0.8-30V (continuously adjustable)

5  Output current :0-12A (Max.)

6  Output power: 200W (heat dissipation should be enhanced over 100W to ensure a long service life)

7  Operating frequency: 300KHz

8  Conversion efficiency: up to 95>#/p###

9  Operating temperature: -40 to +85C

10           Short circuit protection: Yes (please try not to short-circuit)

11           Overtemperature protection: Yes (automatically shutdown the output)

12           Input reverse polarity protection: Yes (can not be prolonged reverse)

13           Installation: terminals, so no need to solder.

14           IN+: input positive

15           IN- : input negative

16           OUT+: output positive

17           OUT-: output negative

18           Color: Silver (blue colouring is protective film to be removed)

19           Net Weight: 81g
