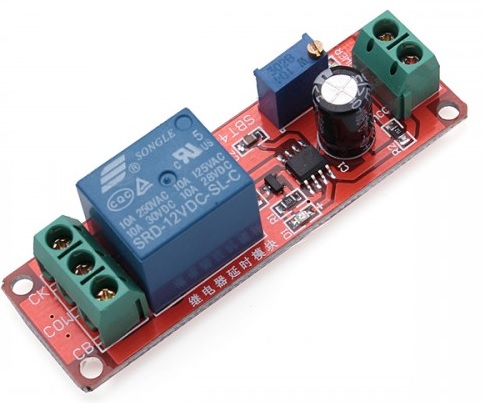

Delay Timer Switch Adjustable 0-10" with ΝΕ555 Electrical Inpute
Timing from Microseconds to HOURS
Simple Circuitry
Precision Pulse Generation / Timing
FMAX = 500 KHz
Use a single 4 to 16 VDC supply
Excellent temperature stability 0.005% / °C
Adjustable Duty Cycle
Countless Application and Information Sources
Chip (ΝΕ555) Characteristic:
When unconnected with the supply power, the state of the module is "ΝΟ" [normal open], CB and COM are conductive. CK and COM are unconducive
When connected with the supply power, delay for 0-10s, the module will in the state of "NC" [normal closed], CB and COM are unconducive, CK and COM is conductive
Specification:
Input voltage: DC12V
Control voltage: AC 0~250V / max. 10Α, DC 0~30V / max. 10Α
Max. Loading: 2200W
