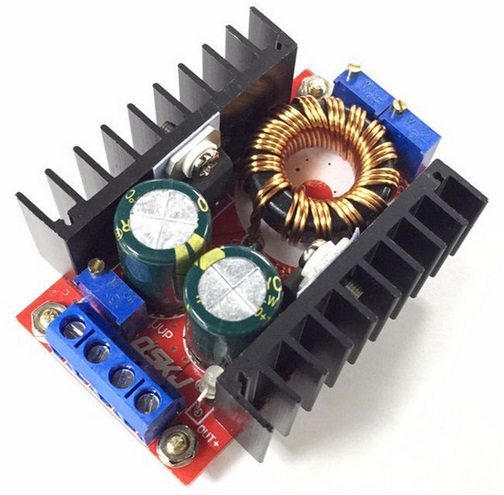

150W DC-DC Boost Converter 10-30V to 12-35V Max 10Α Step Up Voltage
This 150W DC-DC Boost Converter 10-30V to 12-35V module allows you to step up an input voltage as low as 10V and set the output to 12V-35V. The output voltage will be higher than the input voltage.
This module also additionally has Constant Current (CC) and Constant Current and Under Voltage Protectio (UVP) circuits.
The boost converter design is based on popular Texas Instruments UC3844 current mode PWM controller chip.
Input Voltage: 10V - 30V DC
Output Voltage: 12V - 35V DC
Output Current: 10Α MAX
Input Current: 16Α (ΜΑΧ)
Output Power : natural cooling 100W (ΜΑΧ), strengthening cooling 150W (ΜΑΧ) real power.
Conversion efficiency : 94% (Input @24V ,Output @35V/2A)
Output ripple : 350mV (input @12V , Output @24V/3A )
Working Temperature : industrial (- 40 ° c to +85 °c) ( environmental temperature, more than 40 degrees, please reduce power to use, or - enhance cooling)
No-load current : 20mA typical
Short circuit protection: No (Please installs the fuse or protection circuit at input parts).
Input Reverse protection: No (please comply with a reverse protection or connect a diode at input parts.)
The temperature of the step up Module should not exceed 80°C
Dimensions : 65x47x23.5 mm
