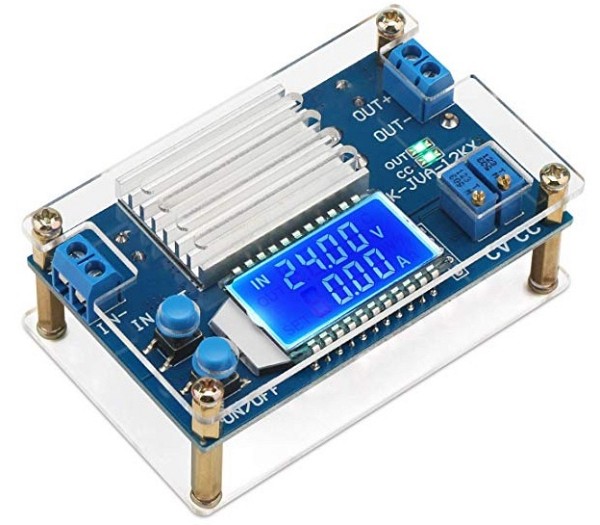

DC Buck Converter, DC-DC Reducer 5.3V-32V
24V to Adjustable 1.2V-32V
5V 9V 12V Step Down Voltage Regulator 12Α
Step-Down Volt Transformer 160W CC- CV
Power Supply Module with LCD Display
Input voltage range: DC 5.3-32V (limit 35V; the lowest input 4V can achieve buck, but less than 5.3V input voltage, current measurement is inaccurate)
Output voltage range: DC 1.2-32V (must ensure that the input voltage is higher than the output voltage, the minimum voltage difference is 0.8V)
Output current: 8Α for long-term stable work, strengthen the heat dissipation can reach 12A
Output power: natural cooling 120W (within 8Α), enhance cooling can reach 160W
Voltage display: resolution 0.05V, range 0-32V
Current display: resolution 0.01Α, range 0-12A
Conversion efficiency: about 96%
Soft start: Yes (high power with load module may fail to start)
Input reverse connection protection: yes
Output stop current from feeding back: none (if you charge the battery, first power the module then connect to the battery, and ensure that the battery voltage is lower than the output voltage)
Short circuit protection: yes
Dimension: 82x 52x 32mm
