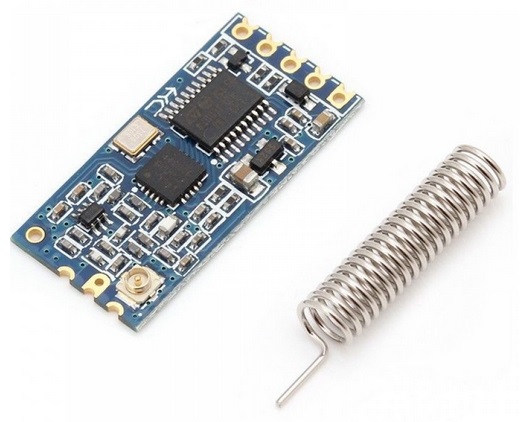

The HC-12 based on SI4463 is a half-duplex wireless serial communication module with 100 channels in the 433.4MHz long-range that is capable of transmitting up to 1 km.
2 pcs of the HC-12 is used to create a wireless link between two computers.
For example, to transfer telemetry data from UAV. Or connect sensors. Or whatever else one can think of.
Can be configured using ΑΤ commands and allows to use an external antenna.
Είσοδος ή εγγραφή για προβολή διαθεσιμότητας και τιμές χονδρικής
The HC-12 based on SI4463 is a half-duplex wireless serial communication module with 100 channels in the 433.4MHz long-range that is capable of transmitting up to 1 km.
2 pcs of the HC-12 is used to create a wireless link between two computers.
For example, to transfer telemetry data from UAV. Or connect sensors. Or whatever else one can think of.
Can be configured using ΑΤ commands and allows to use an external antenna.
Maximum output power is 100mW (20dBm) and receiver sensitivity differs from -117dBm to -100dBm, depending on transmission speed.
It accepts 3,2V-5,5V power supply and can be used with 3.3V and 5V UART voltage devices (5V safe).
