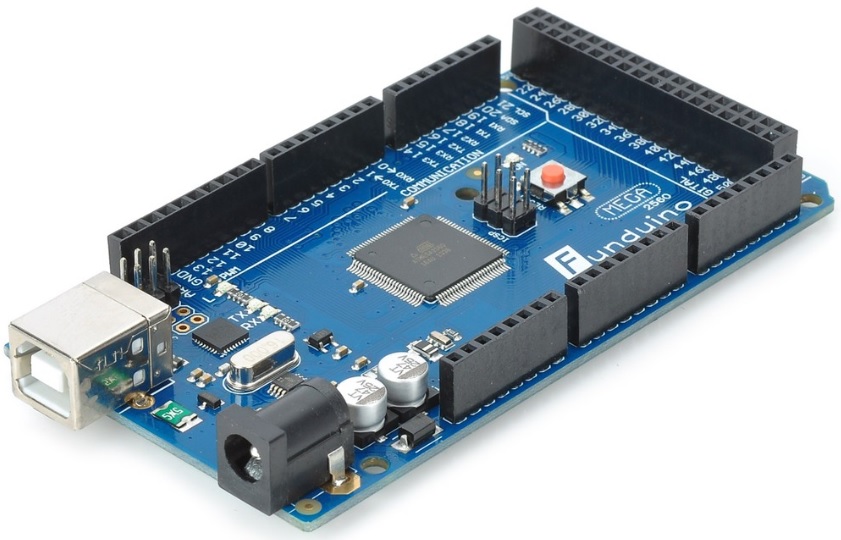

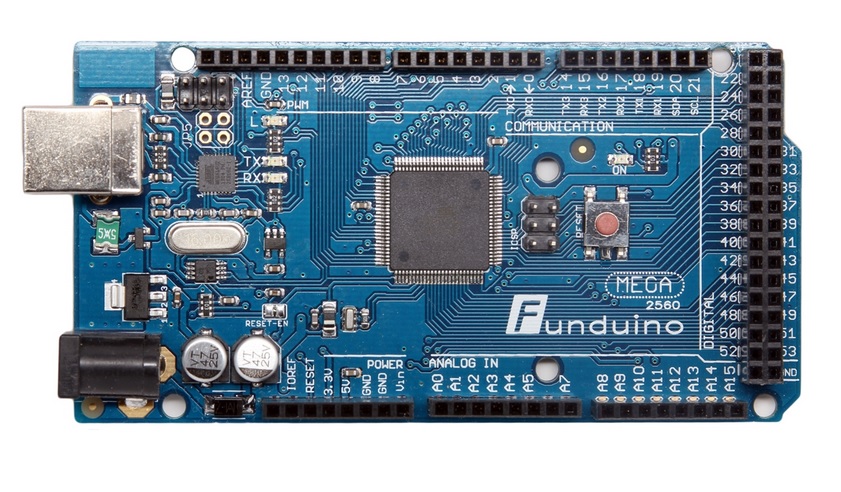

Funduino Mega 2560 R3 Equals to Arduino Mega 2560 R3 is a microcontroller board based on the ATmega2560.
It has 54 digital input/output pins (of which 14 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable...
Funduino Mega 2560 R3 Equals to Arduino Mega 2560 R3 is a microcontroller board based on the ATmega2560.
It has 54 digital input/output pins (of which 14 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started. The Mega is compatible with most shields designed for the Arduino Duemilanove or Diecimila.
Microcontroller ATmega2560
Operating Voltage 5V
Input Voltage (recommended) 7-12V
Input Voltage (limits) 6-20V
Digital Ι/Ο Pins 54 (of which 14 provide PWM output)
Analog Input Pins 16
DC Current per Ι/Ο Pin 40 mA
DC Current for 3.3V Pin 50 mA
Flash Memory 256 ΚΒ of which 8 ΚΒ used by bootloader
SRAM 8 KB
EEPROM 4 KB
Clock Speed 16 MHz
