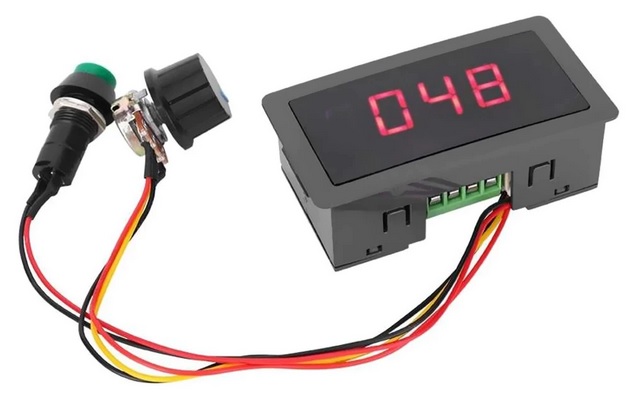

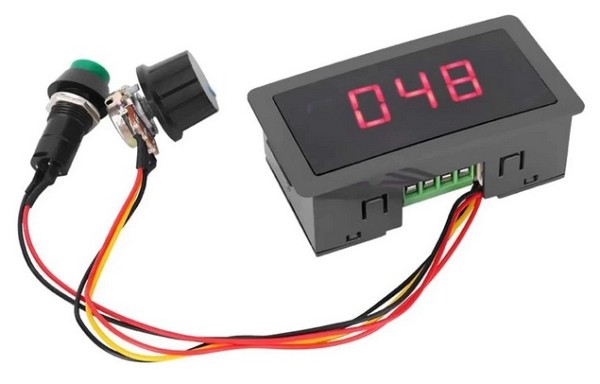

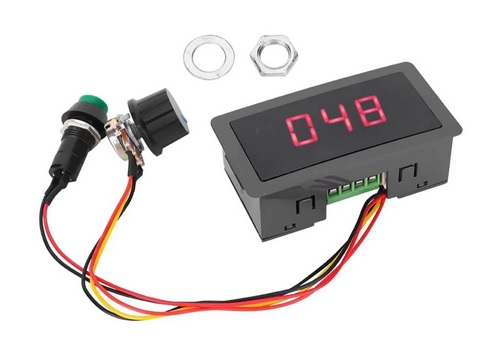

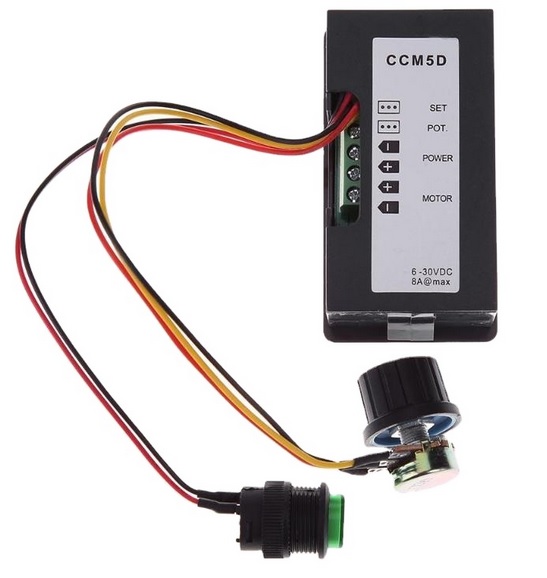

6V 12V 24V 5Α PWM DC Motor Speed Controller CCM5D Digital Display LED Motor Controller Speed Regulator High Quality
Features:
CCM5D DC motor speed regulator controls the speed of a DC motor by adjusting pulse-width-modulated (PWM).
Large 0.56 inch 3-digit LED display numbers allow viewing under the most adverse conditions.
The display range of 3-digit LED display is ”000”-“100”.
Adjustable speed range is 0%-100%. Suitable for the DC motor (or DC load) within 5Α.
Incorporate a push key. Push closed, and then push open.
Specifications:
Material: plastic
Color: black
Size:about 79x42x24mm
Input supply voltage: 6V-24VDC
The maximum output power: 180W
The maximum continuous output current :8A
The LED display the duty ratio 0-100%
PWM frequency:16kHz
Duty cycle adjustable: 0%-100%
