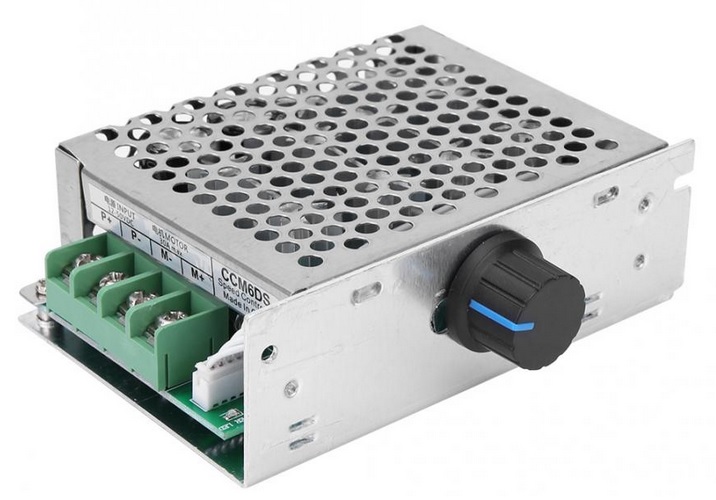

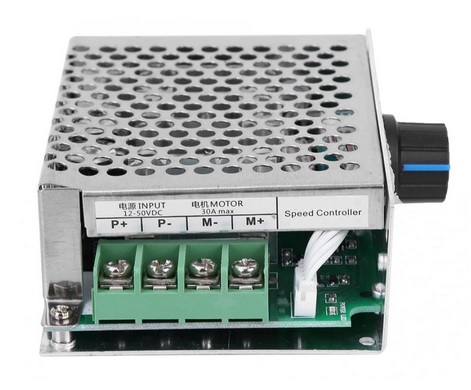

Adjustable 12-50V 30Α 1500W DC Motor Speed Control Switch PWM ΗΗΟ RC Controller
Wide range of operating voltage: 12V, 24V, 36V, 48V, 50V
Speed controller for DC brush motors
4 power tubes, high-frequency capacitance and 30Α ceramic fuse are used in the module
With 200mm white cable, potentiometer for adjustment and start/stop/brake switch
Metal case creates better durability; max. Power of 1500W and small noise
Notice:
1. This speed controller is applicable to DC brush motor, not the DC brushless motor; it cant be used as voltage
2. It should be connected with DC voltage, dont connect with AC voltage
3. The anode and the cathode of DC power cannot be connected reversely, otherwise the controller will be damaged
4. When running direction is inconsistent with your desire, you can change it by adjusting the linear order
5. Potentiometer switch can change the output duty cycle of controller and then change the motor speed
Specifications:
Operating Voltage: DC 12V-50V
Rated Current: 30Α
Control Power: Max. 1500W
Speed Control Range: 0% -100%
PWM Frequency: 21KHz
Item Size: 110x76x 35mm
