■ Support iPhone 8 series, iPhone X series, iPhone 11 series 7.5W fast charging, Android 10W fast charging, iPhone 12 series 7.5W, compatible standards: Qi (BPP-5W), Samsung 10W, Apple 7.5W, working environment: 0-35 ℃
■ Adapter requirements: QC3.0 27W or more, tpye-c interface
■Input voltage range (Miro-USB): QC (5V/9V)
■ Output power: 5V-5W, QC/9V-5W/7.5W/10W/15w
■Sensing distance: ≤8mm
■ Operating frequency: 110KHz-205KHz
■ Metal foreign body detection:Yes
■ efficiency: efficiency: Qi-BPP-5W-73%, APPLE-7.5W-80.11%, Samsung-10W-81.04%

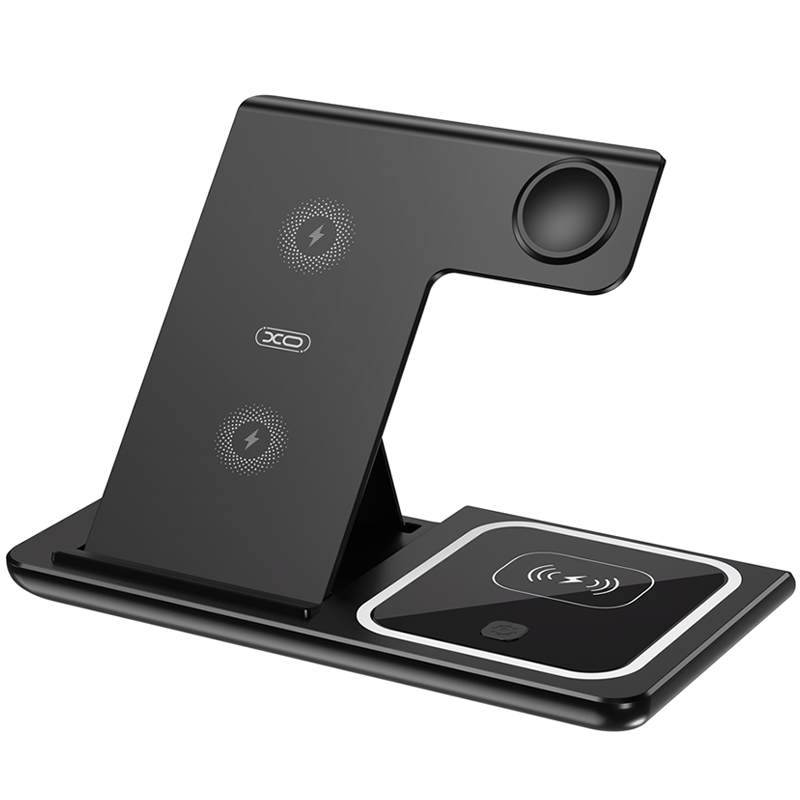

■ Material: plastic + acrylic , size: 165 * 141.3 * 13mm Weight: net weight 171.5k
■Master control scheme: BTC IP6826+IP6806 FM (QC adapter)
Coil size: OD45*H2.4mm +8346 dual coil
Coil inductance: 6.8uH±5%
Coil internal resistance: ≤45mΩ
Resonant capacitor specification: M3L, 104*4PCS
Input allowable ripple: ≤150mV (Vp-p)
■ Over-voltage, over-current protection, no harm to the machine, intelligent identification.

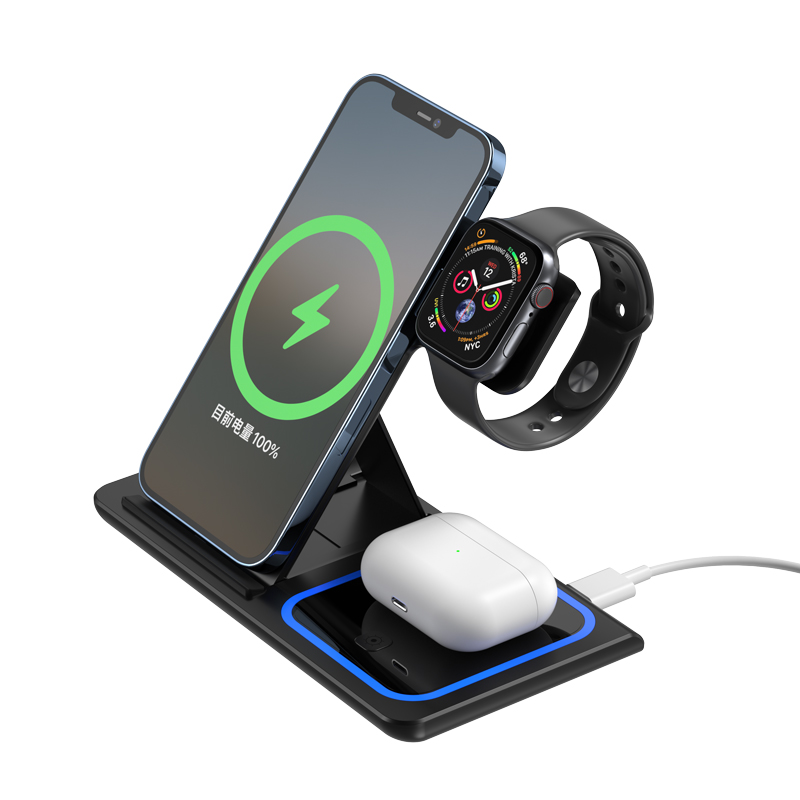

■ three-in-one wireless charging while supporting cell phones, Apple headphones, Apple Watch wireless charging
■ Charging power: 15W for cell phones 3W for headphones 2.5W for Apple watches
