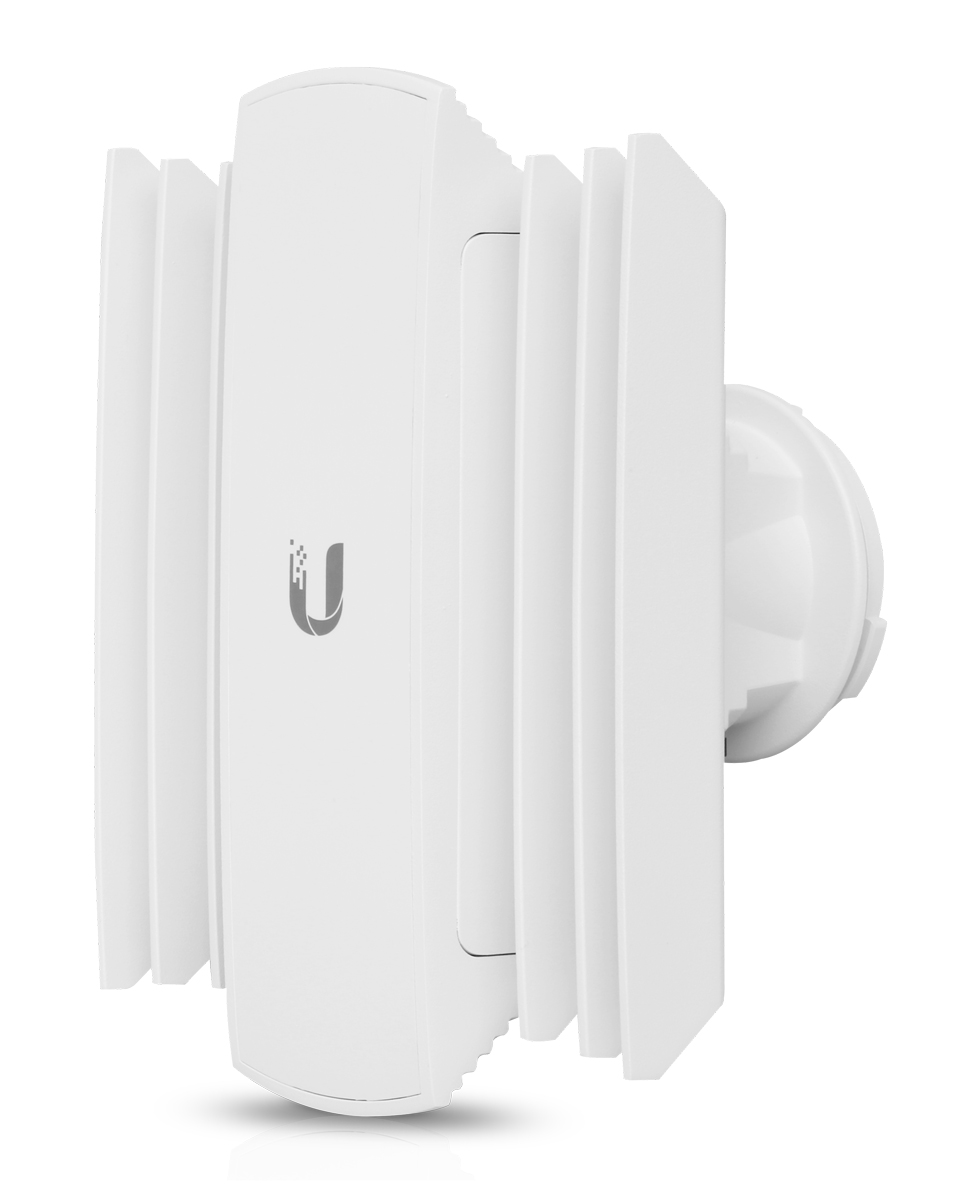

UBIQUITI εξωτερική κεραία HORN-5-90, 5GHz, 13 dBi
With a range of different beam widths, the isolation antennas are interchangeable and feature high-performance beam patterns ideal for a range of deployment needs. Used with the airFiber LTU and airMAX radios, these antennas deliver superb co-location performance without sacrificing gain.
Τεχνικά χαρακτηριστικά
Dimensions: 152.1 x 186.8 x 113.2 mm
Weight: 920g
Frequency Range: 5.15 - 5.85...
UBIQUITI εξωτερική κεραία HORN-5-90, 5GHz, 13 dBi
With a range of different beam widths, the isolation antennas are interchangeable and feature high-performance beam patterns ideal for a range of deployment needs. Used with the airFiber LTU and airMAX radios, these antennas deliver superb co-location performance without sacrificing gain.
Τεχνικά χαρακτηριστικά
Dimensions: 152.1 x 186.8 x 113.2 mm
Weight: 920g
Frequency Range: 5.15 - 5.85 GHz
Compatible Radios: IsoStation/PrismStation/airFiber AF-LTU
Gain: 13 dBi
HPOL Beamwidth: 90°
VPOL Beamwidth: 90°
Elevation Beamwidth: 45°
Polarization: Dual-Linear
Cross-Pol Isolation: 17dB
Max.VSWR: 2:1
Wind Loading(with PrismStation): 46 N @ 200 km/h (10.34 lbf @ 125 mph)
Wind Survivability: 200 km/h(125 mph)
| Κατηγορία: | Directional |
